Description

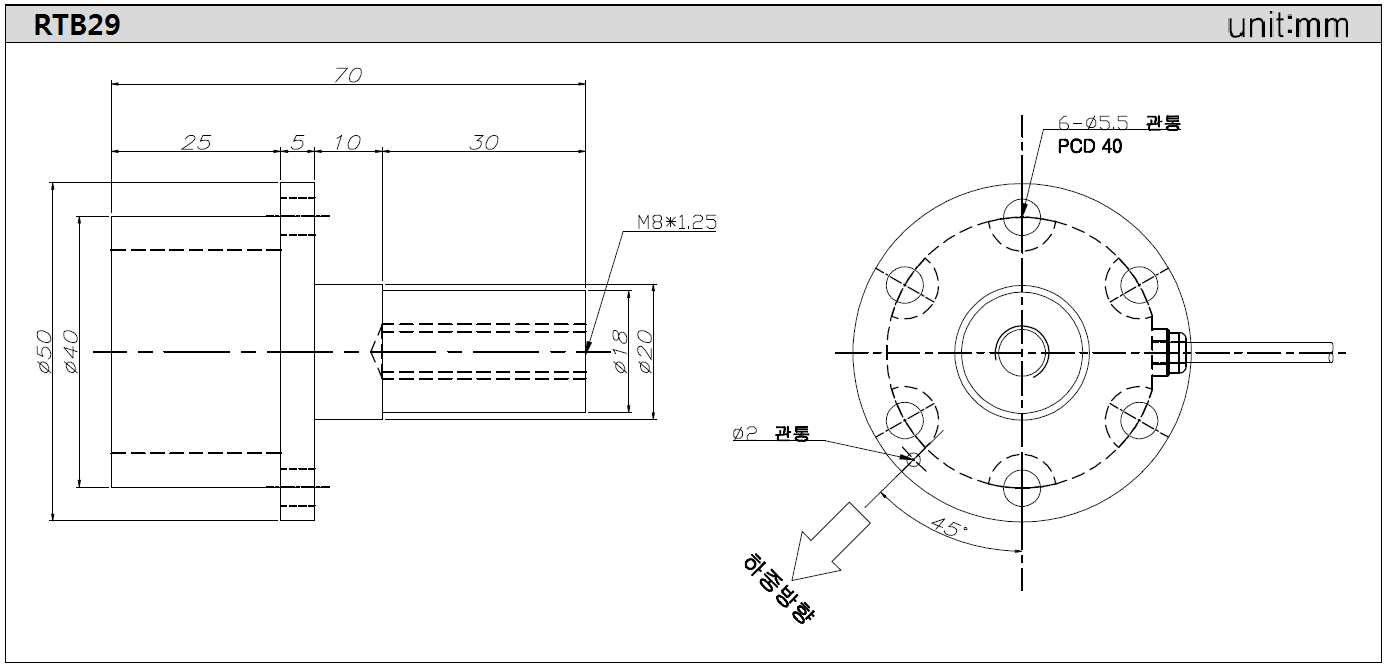

Dimensions
Specifications
| Specifications | Accuracy |
|---|---|
| Model | RTB29 |
| Rated capacity(R.C) | 10kgf |
| Rated output(R.O) | 1.0mV/V ± 5% |
| Nonlinearity | 0.05% of R.O. |
| Hysteresis | 0.05% of R.O. |
| Repeatability | 0.05% of R.O. |
| Zero Balance | ±5% of R.O. |
| Temperature range, compensated | -10℃~60℃ |
| Temperature range, safe | -20℃~80℃ |
| Temp. Effect on rated output | ±0.02% of LOAD/10℃ |
| Temp. Effect on zero balance | ±0.03% of R.O./10℃ |
| Terminal resistance input | 350Ω ± 30 |
| Terminal resistance output | 350Ω ± 5 |
| Insulation resistance bridge | 2000 ㏁ |
| Excitation recommended | 10 V |
| Safe overload | 120% R.C. |
| Cable length | Φ3, 4core, 3m |
★Specifications are subiect to change without notice.
